Outdoor Armored Single Mode Fiber Optic Cable With G652D Fiber HDPE Jacket GYXTW

Name: Outdoor Armored Single Mode Fiber Optic Cable With G652D Fiber HDPE Jacket GYXTW
Brand: Huaxin or OEM
Price: 1 USD

Brand Name : Huaxin or OEM

Model Number : Outdoor Fiber Optic Cable GYXTW

Certification : CE, ISO9001

Place of Origin : China

MOQ : 2000M

Price : $1/M

Payment Terms : L/C,T/T

Supply Ability : 500km PER DAY

Delivery Time : 7-14work days

Packaging Details : 1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation

Contact Now

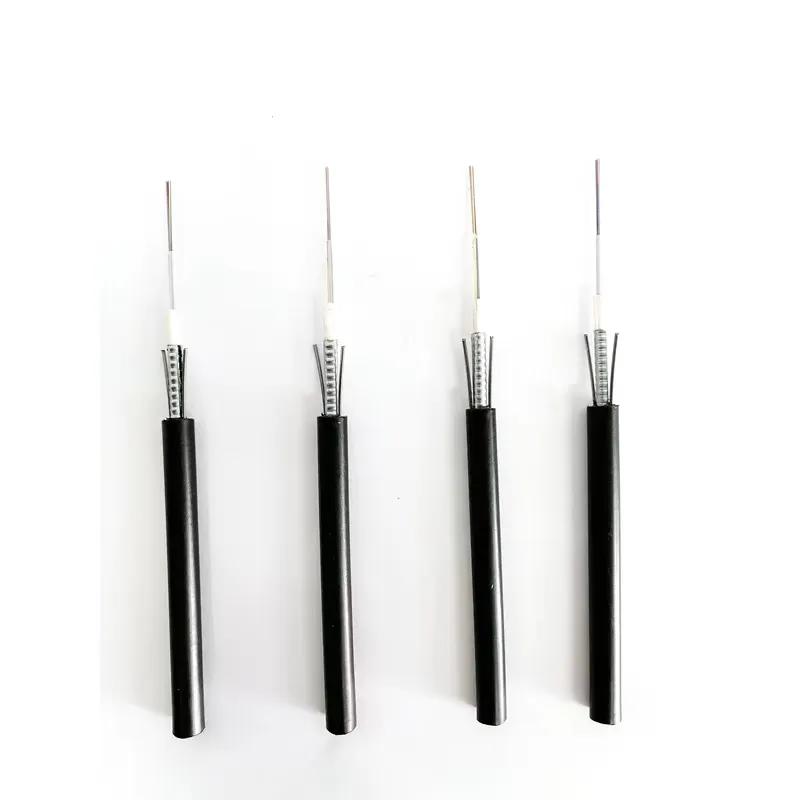

Outdoor Armored Single Mode Fiber Optic Cable with G652D Fiber HDPE Jacket GYXTW

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics:
1.Good mechanical and temperature performance
2.Good mechanical and temperature performance
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.PSP enhancing moisture-proof
6.Two parallel steel wires ensure tensile strength
7.Small diameter, light weight and friendly installation

Optical Characteristics:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
(A) Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
(A) Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters:

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength/Long/Short Term N	Crush Resistance/Long/Short Term N/100mm	Bending Radius/Static /Dynamic mm
GYXS/GYXTW-2~12	2~12	7	110	600/1500	300/1000	10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC

Outdoor Armored Single Mode Fiber Optic Cable With G652D Fiber HDPE Jacket GYXTW

Packing and Transportation

Cable in stock, ship same day.

1 or 2km for a wooden roll.

One roll packed with carton.

Other length is also avaiable without MOQ.

Outdoor Armored Single Mode Fiber Optic Cable With G652D Fiber HDPE Jacket GYXTW

Factory & Production

Certifications

Outdoor Armored Single Mode Fiber Optic Cable With G652D Fiber HDPE Jacket GYXTW

Exhibitions

Outdoor Armored Single Mode Fiber Optic Cable With G652D Fiber HDPE Jacket GYXTW

FAQ

Does this fiber support outdoor use?

We offer both indoor and outdoor types of fiber optic products. The outdoor optical fiber is armored design with waterproof and UV protection, which is suitable for outdoor environment.
Can the length of optical fiber be customized?

Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.
Is the packaging of the product safe?

We use high-strength anti-shock packaging with anti-static foam or bubble wrap inside to make sure the products are not damaged during transportation.
Do you support bulk purchase?

Yes, we support bulk purchase and offer preferential price and customized service. Please contact our sales team for a detailed quotation.
