Indoor 2mm*3mm Flat Optical Cable 1core Ftth Preconnectorized drop cable Single Mode SC/UPC-SC/UPC
Preconnectorized drop cable come in two primary forms: single-mode and multi-mode. Single-mode fiber patch cords use a single light path for signal transmission, making them ideal for long-distance communication. Multi-mode fiber patch cords, on the other hand, allow multiple light paths, offering high bandwidth for shorter distances within local area networks (LANs) or data centers.
Functions of Preconnectorized drop cable
- Interconnection of Fiber optical equipment
- Fiber patch cord can connect Fiber optical equipment with different fiber optical interfaces. High-speed and stable data transmission between different Fiber optical equipment can be achieved through the connection of Fiber patch cord.
- The expansion of fiber optic network
- Fiber patch cord can connect different network device to expand the range of fiber optical network telecommunications.Such as connect switches on different floors or connect routers between different data centers, these can be achieved long distance optical signal transmission, and effectively expand network coverage range.
- Connect with optical module
- Fiber patch cord can also be used to connect optical modules. Use patch cord to connect optical module and other fiber optic equipment to achieve higher speed and longer distance optical signal transmission.
Technical Parameters
| Items | Unit | Specification |
| | | G657a2 |
| Mode Field Diameter | 1310nm | um | 8.6±0.4 |
| | 1550nm | um | 9.5±0.5 |
| Cladding Diameter | um | 125±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.35 |
| | 1550nm | dBkm | ≤0.21 |
Detailed display
Our company has rich experienced professional team and is committed to providing customers with reliable solution and satisfactory services. Through continuous development and expansion of our company, we now have customer around the world, Our products and services have been well received by customers. In the future, we will continue to provide customers with safe and reliable FTTH solutions.
Applications of fiber patch cords
- CATV
- Computer networks
- Telecommunication networks
- ODF of optical transmission system
- High speed data transmission network
- High quality graphic transmission network
- Connection of optical transmission device
Company Profile
- Shandong Huaxin Communication Technology Co. Ltd. has been committed to the communication infrastructure industry since 1998, main products are Fiber Optic Cable, FTTH Drop Cable, Patch Cord and Coaxial Cable.
- Huaxin has independent quality control team and high-precision inspection equipment to guarantee product quality, such as Vertical Horizontal Burning Testing machine, Precision Salt Spraying Testing machine, High and Low Temperature Cycle Testing machine, etc.
- All the products are compliant with RoHS and our company gains the certification of IS09001 quality system, ISO14001 environmental system and ISO18001 safety system.

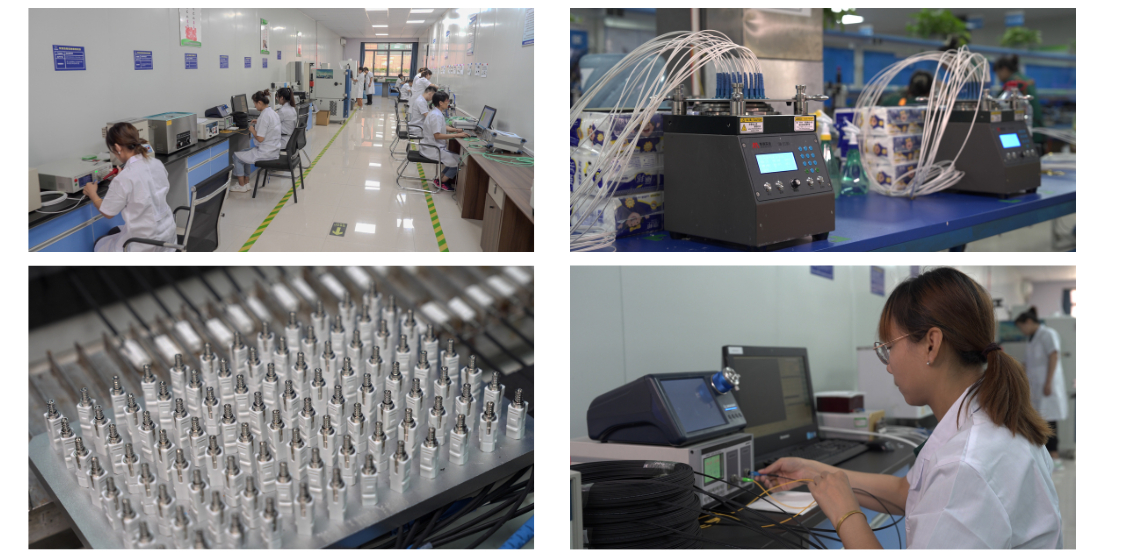

Factory environmen
Certification standards
Packing and Transportation
- The goods are packed in one or more pieces per PE bag, and the text description is glued on the bag.
- The outside is packed in standard cartons with dimensions of 32.5*32.5*39.5cm, the quantity of each carton depends on the diameter and length of the products.
- Each carton can contain 27 or 36 cases per pallet.
- Freight transportation is available by FEDEX, DHL, UPS, TNT and so on. International express includes air and sea transportation.
- OEM Service avaiable for mass quantity, can print your logo on bags
FAQ
Q1: Why choose us?
A1: We specialized in the filed of communication for more than 30 years. We cooperate with the most famous companies: China Telecom, China Unicom, China Mobile and so on. We guarantee the quality for our customers.
Q2: Can I have a sample order for this product?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How can i get your catalogue and price list?
A3: Please let us know your email or contactus from website directly for our catalogue and price list.
Q4: Can you provide the OEM service?
A4: Sure, we have the complete production line, we could do the production as your request.
Q5: How about your delivery time?
A5: Generally, it will take 5-15 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
